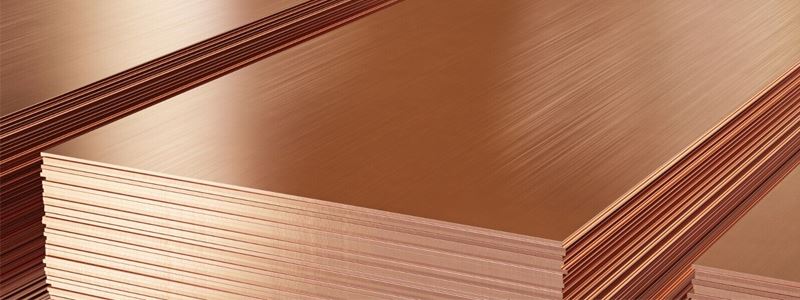

Kothari Metalloys is a leading Copper Sheet & Plate Stockist in India. We take pleasure in our capacity to supply high-quality Copper Sheet & Plates that fulfil the severe needs of many sectors as a Copper Sheet & Plate Supplier. Our firm specializes in the fabrication of copper sheets, utilizing our knowledge and innovative procedures to provide our clients with great goods.
Kothari Metalloys is a top tier Copper Sheet & Plate Supplier. We recognize the value of accuracy and consistency in the process. Our cutting-edge technology and professional team ensure that our copper sheets have correct dimensions and fulfil the tolerances stipulated. As a top Copper Sheet & Plate Stockist, to preserve the integrity and purity of our goods, we deal with various copper alloys, carefully selecting high-grade components.
We appreciate that clients may have special requirements in addition to typical copper sheets. To satisfy unique client demands, we provide customization services such as slitting, edging, and bespoke fabrication which made us a top most Copper Sheet & Plate Stockist.
| Copper Sheet & Plate | Specification |
|---|---|
| Material | Copper |
| Width | 200 mm |
| Thickness | 0.3 mm |
| Length | 50 m |
| Technique | Cold Rolled |
| Packaging Type | Roll/Coil form |
| For Sheet | |||
|---|---|---|---|
| Thickness Range (Min - Max) mm |
Width Range (Min - Max) mm |
Length (Max) mm |
|
| - | - | - | |
| 0.30 - 1 | 450 Max | 1500 | |
| 1- 3.00 | 450 Max | 4000 | |
| Alloy Name | Cu-ETP | Cu-DHP | Cu-TBC |
|---|---|---|---|
| Trade Name | Electrolytic Tough Pitch Copper | Deoxidized, High Residual Phosporus Copper | Tin Bearing Copper |
| Standard Conformance | |||
| IS | IS 191/ 14811/ 1897 | IS 191/ 14811/ 1897 | IS 3331 |
| ASTM | C11000 | C12200 | C14410 |
| BS 2870 | C101 | C106 | - |
| EN 1652 | CW004A | CW024A | - |
| JIS | C1100 | C1220 | - |
| Chemical Composition | |||
| Copper (Cu%) | 99.90 Min | 99.90 Min | 99.50 Min |
| Tin (Sn%) | - | - | 0.07 - 0.20 |
| Phosphourous (P%) | - | 0.015 - 0.040 | 0.015 - 0.045 |
| Other impurities (%) | - | - | - |
| Alloy Name | Trade Name | Temper | Hardness HV | Tensile Strength N/mm2 (Min) | Elongation% min |
|---|---|---|---|---|---|
| Cu-ETP Copper/Tape | Electrolytic Tough Pitch Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-DHP | Deoxidized, High Residual Phosphorus Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-TBC | Tin Bearing Copper | Annealed (O) | 60 Max | - | - |
| Quarter Hard(HA) | 60-80 | - | - | ||
| Half Hard (HB) | 80-100 | - | - | ||
| Hard (H) | 105-125 | - | - | ||
| Extra Hard (HE) | 125 - 145 | - | - |
Kothari Metalloys is a leading Copper Sheet & Plate Supplier & Stockist in India.
We, at Kothari Metalloys, have established a prominent place in the worldwide business as a leading Copper Sheet & Plate Stockist. Our consistent expansion and growth are the result of our unwavering efforts to connect with new clientele in diverse parts of the world. We take immense pride in being recognized as a reliable and trusted Copper Sheet & Plate Supplier.
| Countries We Export | ||
|---|---|---|
| Saudi Arabia | Qatar | Canada |
| Sri Lanka | Iran | Nigeria |
| Bangladesh | Oman | UAE |
| Turkey | Kuwait | Venezuela |
| Africa | Singapore | Netherlands |
| United Kingdom | Mexico | Malaysia |
| United States | Australia | Japan |
