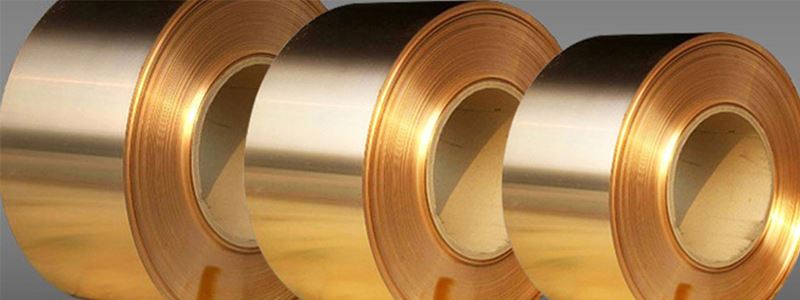

Kothari Metalloys is a leading Brass Strip & Coil Stockist in India. Our firm specializes in the fabrication of brass strips, utilizing our knowledge and innovative production procedures to provide our clients with great goods. We take pleasure in our capacity to supply high-quality Brass Strip & Coils that fulfil the severe needs of many sectors as a Brass Strip & Coil Supplier.
As a top Brass Strip & Coil Stockist, to preserve the integrity and purity of our goods, we deal with various brass alloys, carefully selecting high-grade components. Kothari Metalloys is a top tier Brass Strip & Coil Supplier. We recognize the value of accuracy and consistency in the production process. Our cutting-edge technology and professional team ensure that our brass strips have correct dimensions and fulfil the tolerances stipulated.
To satisfy unique client demands, we provide customization services such as slitting, edging, and bespoke fabrication which made us a top most Brass Strip & Coil Supplier. We appreciate that clients may have special requirements in addition to typical brass strips.
| Brass Strip & Coil | Specification |
|---|---|
| Material | Brass |
| Width | 200 mm |
| Thickness | 0.3 mm |
| Length | 50 m |
| Technique | Cold Rolled |
| Packaging Type | Roll/Coil form |
| Alloy | For Strips & Coils | |||
|---|---|---|---|---|
| Thickness Range (Min - Max) mm |
Width Range (Min - Max) mm |
Coil ID (Min - Max) mm |
Coil Density (Max coil weight) |
|
| Brass | 0.08 - 0.30 | 6 - 350 | 100 - 300 | 2 - 3 |
| 0.31 - 0.80 | 6 - 450 | 100 - 400 | 1 - 4.5 | |
| 0.81 - 4.25 | 20 - 450 | 300 - 500 | 2 - 3 | |
| Alloy Name | CuZn40 | CuZn37 | CuZn36 | CuZn35 | CuZn33 | CuZn30 | CuZn15 | CuZn10 | CuZn05 |
|---|---|---|---|---|---|---|---|---|---|
| Trade Name | Muntz Metal | Yellow Brass | Yellow Brass | Yellow Brass | Yellow Brass | Cartridge Brass | Red Brass | Commercial Bronze | Gilding Metal |
| Standard Conformance | |||||||||
| IS | IS 410 | IS 410 | - | - | - | IS 410 | - | IS 2768 | IS 3167 |
| ASTM | C28000 | C272000 | C27000 | C27000 | C268000 | C26000 | C23000 | C22000 | C21000 |
| BS 2870 | CZ109 | CZ108 | CZ107 | CZ107 | CZ107 | CZ106 | CZ102 | CZ101 | CZ125 |
| DIN 17660 | 2.036 | 2.0321 | 2.0335 | - | 2.028 | 2.0265 | 2.024 | 2.023 | 2.022 |
| EN 1652 | CW509L | CW508L | CW507L | - | CW506L | CW505L | CW502L | CW501L | CW500L |
| JIS 3100 | C2801 | C2720 | - | C2680 | C2680 | C2600 | C2300 | C2200 | C2100 |
| Chemical Composition | |||||||||
| Copper (Cu%) | 60 | 63 | 64 | 65 | 67 | 70 | 85 | 90 | 94 - 98 |
| Zinc (Zn%) | 40 | 37 | 36 | 35 | 33 | 30 | 15 | 10 | Remaining |
| Other impurities (%) | <0.75 | <0.60 | <0.60 | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 |
| Alloy Name | Trade Name | Temper | Hardness HV Min - Max |
Tensile Strength N/mm2 (Min) | Elongation% min |
|---|---|---|---|---|---|
| CuZn40 | Muntz Metal | Annealed (0) | 85 Max | 275 Min | 30 |
| Quarter Hard(HA) | 85-110 | 350 - 420 | 20 | ||
| Half Hard (HB) | 100-125 | 420 - 490 | 12 | ||
| Hard (H) | 125-155 | 490 Min | 5 | ||
| Extra Hard (HE) | 160 - 180 | 565 Min | - | ||
| Spring Hard (HS) | - | - | - | ||
| Cuzn37 | Yellow Brass | Annealed (0) | 80 Max | 275 Min | 40 |
| Quarter Hard(HA) | 75-110 | 335 - 380 | 30 | ||
| Half Hard (HB) | 110-135 | 380-450 | 15 | ||
| Hard (H) | 135-165 | 450-515 | 5 | ||
| Extra Hard (HE) | 165-185 | 515-660 | - | ||
| Spring Hard (HS) | 185 Min | 660 Min | - | ||
| Cuzn36 | Yellow Brass | Annealed (0) | 80 Max | 275 Min | 40 |
| Quarter Hard(HA) | 75-110 | 335-380 | 30 | ||
| Half Hard (HB) | 110-135 | 380-450 | 15 | ||
| Hard (H) | 135-165 | 450-515 | 5 | ||
| Extra Hard (HE) | 165-185 | 515-660 | - | ||
| Spring Hard (HS) | 185 Min | 660 Min | - | ||
| Cuzn35 | Yellow Brass | Annealed (0) | 80 Max | 275 Min | 40 |
| Quarter Hard(HA) | 75-110 | 335-380 | 30 | ||
| Half Hard (HB) | 110-135 | 380-450 | 15 | ||
| Hard (H) | 135-165 | 450-515 | 5 | ||
| Extra Hard (HE) | 165-185 | 515-660 | - | ||
| Spring Hard (HS) | 185 Min | 660 Min | - | ||
| Cuzn33 | Yellow Brass | Annealed (0) | 80 Max | 275 Min | 40 |
| Quarter Hard(HA) | 75-110 | 335-380 | 30 | ||
| Half Hard (HB) | 110-125 | 380 | 15 | ||
| Hard (H) | 135-165 | 450-515 | 5 | ||
| Extra Hard (HE) | 165-185 | 515-660 | - | ||
| Spring Hard (HS) | 185 Min | 660 Min | - | ||
| Cuzn30 | Cartridge Brass | Annealed (0) | 80 Max | 275 Min | 50 |
| Ouarter Hard(HA) | 75-100 | 320-345 | 35 | ||
| Half Hard (HB) | 100-125 | 345-405 | 20 | ||
| Hard (H) | 125 Min | 405 Min | 5 | ||
| Extra Hard (HE) | 150 Min | 480 Min | - | ||
| Spring Hard (HS) | 185 Min | 655 Min | - | ||
| Cuzn15 | Red Brass | Annealed (0) | 55-75 | 245 Min | 35 |
| Quarter Hard(HA) | 75-95 | 275-325 | 15 | ||
| Half Hard (HB) | 95-110 | 325-375 | 7 | ||
| Hard (H) | 110 - 140 | 350 Min | 3 | ||
| Extra Hard (HE) | 140 - 160 | 480 Min | - | ||
| Spring Hard (HS) | 155 - 180 | 540 Min | - | ||
| Cuzn10 | Commercial Bronze | Annealed (0) | 55-75 | 245 Min | 35 |
| Quarter Hard(HA) | 75-95 | 275 - 325 | 15 | ||
| Half Hard (HB) | 95-110 | 325-375 | 7 | ||
| Hard (H) | 110 - 140 | 350 Min | 3 | ||
| Extra Hard (HE) | 130 - 145 | 440 MIn | - | ||
| Spring Hard (HS) | 140 - 160 | 475 Min | - | ||
| Cuzn05 | Gilding Brass | Annealed (0) | 55-75 | 230 - 280 | 35 |
| Quarter Hard(HA) | 70 - 90 | 255-325 | 12 | ||
| Half Hard (HB) | 80 - 100 | 290 - 355 | 7 | ||
| Hard (H) | 100 - 115 | 345 Min | 3 | ||
| Extra Hard (HE) | 115-125 | 385 Min | - | ||
| Spring Hard (HS) | 120 - 135 | 415 Min | - |
Kothari Metalloys is a leading Brass Strip & Coil Supplier & Stockist in India.
We, at Kothari Metalloys, have established a prominent place in the worldwide business as a leading Brass Strip & Coil Stockist. Our consistent expansion and growth are the result of our unwavering efforts to connect with new clientele in diverse parts of the world. We take immense pride in being recognized as a reliable and trusted Brass Strip & Coil Supplier.
