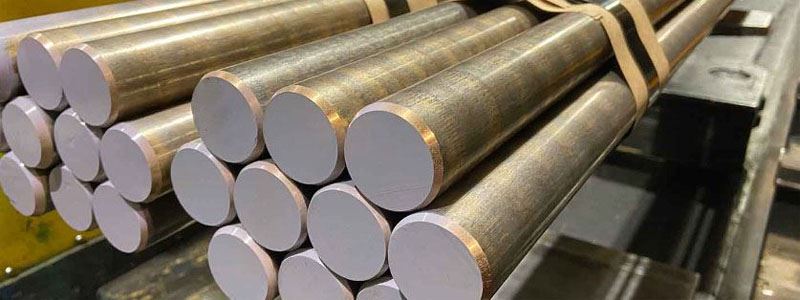

Kothari Metalloys is a prominent Aluminium Bronze Supplier in India. Our Aluminium Bronze Bars are handcrafted using premium grade materials to provide high electrical conductivity and thermal efficiency. Our product has excellent and reliable dimensional standards, resulting in almost perfect flatness. These are the types of trustworthy qualities you might look for to meet the needs of your tasks.
Kothari Metalloys is a leading Aluminium Bronze Supplier in India. We supply various tyoes of Aluminium Bronze Products such as Pipes & Tubes, Busbar, Sheet, Plate, Strip & Coil. Our highly skilled and dedicated team works hand in hand with our valued customers, placing great emphasis on understanding their unique requirements. This collaborative approach allows us to provide tailor made bus bars that precisely match their exact specifications and expectations.
At our firm, our unwavering dedication to excellence extends to both the quality of our products and the level of customer service we provide. As a leading Aluminium Bronze Supplier, we continuously strive to surpass industry standards by investing in cutting-edge production methods and adhering to rigorous quality control processes.
| Grade | Composition (Approximate %) | Typical Size Range |
|---|---|---|
| C61400 | Cu: 83.0%, Al: 11.0%, Fe: 4.0% | Pipes - Outer Diameter: 6-219mm, Wall Thickness: 0.5-20mm |
| Ni: 2.0% | Tubes - Outer Diameter: 6-50mm, Wall Thickness: 0.5-10mm | |
| Busbar - Width: 10-200mm, Thickness: 3-30mm | ||
| C62300 | Cu: 88.0%, Al: 10.0%, Fe: 2.0% | Sheet - Thickness: 0.1-5mm, |
| Plate - Thickness: 5-50mm | ||
| Strip - Width: 10-600mm | ||
| C63000 | Cu: 83.0%, Al: 7.5%, Ni: 7.0% | Strip - Thickness: 0.05-5mm |
| Coil - Width: 10-600mm | ||
| Coil - Thickness: 0.05-5mm | ||
| C64200 | Cu: 88.5%, Al: 10.5%, Fe: 1.0% | 6 mm to 250 mm |
| Alloy | Related Standards | Size Range | Related Standard Applications |
|---|---|---|---|
| CA 103 CA 104 C 63000 |
ASTM B 105 EN 12163 BS 2874 |
6 mm to 250 mm | High Pressure Valve Gears Valve Marine Pumps Marine Hardware Bearing cages Bushings |
| Standard | Symbol |
|---|---|
| ASTM B 111 | C60800 |
| EN 12451 | CuAl5As CW200G |
| Standard | Symbol | 8 | Sn | A1 | Pb | Mn | Fe | Zn | As | Ni | Condition | Yield strength N / mm² | Tensile N / mm | Elongation A5 % | Hardness HV 5 | Grain size mm ( 75X ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM B - 111 |
C 60800 | Remainder | - | 5.0-6.5 | 0.01 Max . | - | 0.01 Max . | 0.02-0.35 | - | 61 | 130 Min . | 345 Min . | 0.010-0.045 | |||
| EN 12451 | CuAI5As CW200G |
Remainder | 0.03 Max . | 4.0-6.5 | 0.02 Max . | 0.20 Max . | 0.20 Max . | 0.30 Max . | 0.10-0.40 | 0.20 Max . | R 350 | 110 Min . | 350 Min . | 50 Min . | 0.010-0.050 |
| Alloy | Related Standards | Size Range | Related Standard Applications |
|---|---|---|---|
| CA 103 CA 104 C 63000 |
ASTM B 105 EN 12163 BS 2874 |
6 mm to 250 mm | High Pressure Valve Gears Valve Marine Pumps Marine Hardware Bearing cages Bushings |
| Grade | Copper (Cu) % | Aluminum (Al) % | Iron (Fe) % | Nickel (Ni) % | Other Elements % (Typically) |
|---|---|---|---|---|---|
| C61400 | 83.0 | 11.0 | 4.0 | 2.0 (max) | - |
| C62300 | 88.0 | 10.0 | 2.0 | - | - |
| C63000 | 83.0 | 7.5 | - | 7.0 (max) | - |
| C64200 | 88.5 | 10.5 | 1.0 | - | - |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| C61400 | 689 - 827 | 345 - 483 | 20 - 35 | 160 - 225 |
| C62300 | 586 - 689 | 276 - 483 | 18 - 35 | 140 - 200 |
| C63000 | 689 - 827 | 276 - 414 | 20 - 35 | 160 - 225 |
| C64200 | 689 - 827 | 276 - 414 | 20 - 35 | 160 - 225 |
Kothari Metalloys is a leading Aluminium Bronze Supplier & Stockist in India.
We have established a prominent place in the worldwide business as a leading Aluminium Bronze Stockist. Our consistent expansion is the consequence of our unwavering efforts to connect with new clientele in diverse parts of the world. Furthermore, we are well-known as a reliable Aluminium Bronze Supplier.
