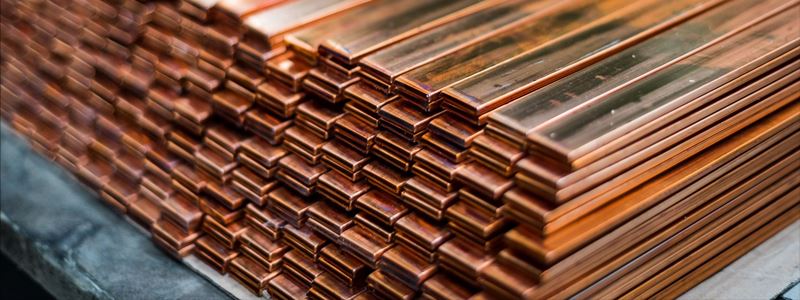

Kothari Metalloys is a market leading Copper Bar Stockist in India. We recognize that various sectors have unique requirements, which is why we provide tailored solutions. Our skilled staff collaborates closely with customers to understand their needs and supply custom-made bus bars that fit their exact specifications. As a leading Copper Bar Supplier, we have established ourselves as a reliable source of bespoke bars due to our dedication to client satisfaction.
At our firm, we are always striving for excellence in both product quality and customer service. As a top Copper Bar Supplier, to ensure that our bus bars surpass industry requirements, we invest in innovative production methods and adhere to stringent quality control processes. Our commitment to providing exceptional goods has established us as a market leading Copper Bar Stockist.
Kothari Metalloys is India's leading Copper Bar Supplier. Our copper bars are handcrafted using premium-grade copper wire to provide high electrical conductivity and thermal efficiency. We use innovative production processes and strict quality control systems as a leading Copper Bar Stockist to provide goods that meet the highest industry standards.
| Copper Bar | Specification |
|---|---|
| Material | Copper |
| Type | Straight Bar |
| Width | 10mm to 300mm |
| Thickness | 1mm (min) to 50mm (max) |
| Length | Straight Length: 1mtr to 6mtr |
| Grade | C10100 – (OFE) Oxygen Free Electrolytic C11000 – (ETP) Electrolytic Tough Pitch |
| Temper | Soft (Annealed) | Half Hard | Quarter Hard |
| Alloy Name | Cu-ETP | Cu-DHP | Cu-TBC |
|---|---|---|---|
| Trade Name | Electrolytic Tough Pitch Copper | Deoxidized, High Residual Phosporus Copper | Tin Bearing Copper |
| Standard Conformance | |||
| IS | IS 191/ 14811/ 1897 | IS 191/ 14811/ 1897 | IS 3331 |
| ASTM | C11000 | C12200 | C14410 |
| BS 2870 | C101 | C106 | - |
| EN 1652 | CW004A | CW024A | - |
| JIS | C1100 | C1220 | - |
| Chemical Composition | |||
| Copper (Cu%) | 99.90 Min | 99.90 Min | 99.50 Min |
| Tin (Sn%) | - | - | 0.07 - 0.20 |
| Phosphourous (P%) | - | 0.015 - 0.040 | 0.015 - 0.045 |
| Other impurities (%) | - | - | - |
| Alloy Name | Trade Name | Temper | Hardness HV | Tensile Strength N/mm2 (Min) | Elongation% min |
|---|---|---|---|---|---|
| Cu-ETP Copper/Tape | Electrolytic Tough Pitch Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-DHP | Deoxidized, High Residual Phosphorus Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-TBC | Tin Bearing Copper | Annealed (O) | 60 Max | - | - |
| Quarter Hard(HA) | 60-80 | - | - | ||
| Half Hard (HB) | 80-100 | - | - | ||
| Hard (H) | 105-125 | - | - | ||
| Extra Hard (HE) | 125 - 145 | - | - |
Kothari Metalloys is a top tier Copper Round Bar Supplier in India, we take immense pride in being a market leader in providing top quality Copper Round Bars to various sectors across the nation. Our commitment to excellence and customer satisfaction has made us the preferred choice for businesses seeking tailored solutions for their copper bar needs.
| Material | Brand | Type | Outside Diameter | Thickness | Length |
|---|---|---|---|---|---|
| Copper | Kothari | Round in Straight Form | 10mm to 250mm | ** | Straight Length 1mtr to 6mtr |
Kothari Metalloys is a leading Copper Bar Supplier & Stockist in India.
We have established a prominent place in the worldwide business as a leading Copper Bar Stockist. Our consistent expansion is the consequence of our unwavering efforts to connect with new clientele in diverse parts of the world. Furthermore, we are well-known as a reliable Copper Bar Supplier.
| Countries We Export | ||
|---|---|---|
| Saudi Arabia | Qatar | Canada |
| Sri Lanka | Iran | Nigeria |
| Bangladesh | Oman | UAE |
| Turkey | Kuwait | Venezuela |
| Africa | Singapore | Netherlands |
| United Kingdom | Mexico | Malaysia |
| United States | Australia | Japan |
