Kothari Metalloys is a market leading Copper Fittings & Lug Manufacturer in India. As a renowned manufacturer in the copper industry, we take great pride in being a leading provider of copper fittings and lug. Our company specializes in the production of high-quality copper fittings that are essential components in various plumbing, HVAC, and industrial applications.
As a leading Copper Fittings & Lug Supplier, our production practices represent our dedication to sustainability. We endeavor to reduce waste, improve energy efficiency, and encourage resource stewardship. We hope to lower our carbon footprint and contribute to a cleaner future by following ecologically sensitive methods.

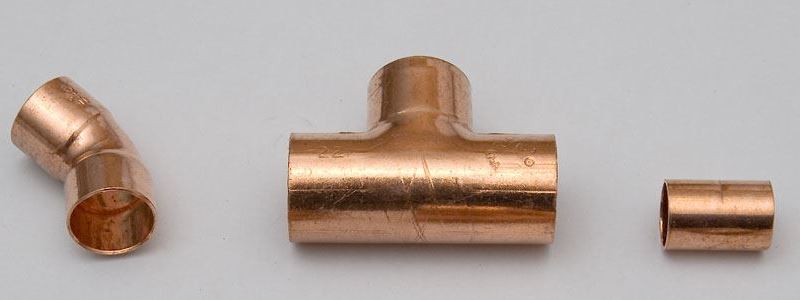

Kothari Metalloys is a leading Copper Fittings & Lug Supplier. Our range of copper fittings and lug includes couplings, elbows, tees, reducers, adapters, flanges, and valves. We offer a comprehensive selection of sizes, configurations, and connection types to suit diverse project requirements. Whether it's for residential, commercial, or industrial applications, our copper fittings provide reliable and leak-free connections which made us a top Copper Fittings & Lug Manufacturer.
| Product | Width | Type | Grade |
|---|---|---|---|
| Copper Fittings for HVACR | (1/4") 6.35mm to (4.1/8) 104.76mm | Elbow | Tee | Coupler | Reducer Coupler | Reducer Tee | DHP (C12200) |
| Copper Fittings for Medical Gas Pipeline Systems | 8mm to 108mm | Elbow | Tee | Coupler | Reducer Coupler | Reducer Tee | DHP (C12200) |
| Copper Fittings for Plumbing | 8mm to 108mm | Elbow | Tee | Coupler | Reducer Coupler | Reducer Tee | DHP (C12200) |
| Copper Brazing Rods for HVACR | 1.5mm Flat | Flat Brazing Rod | 92.50% Copper & 7.50% Phosphorus |
| 5% AG Copper Brazing Rods for Medical Gas Pipeline Systems | 2mm Sq., Length 1ft | Square Brazing Rod | Copper Brazing Rod with 2% Ag & 5% Silver |
| Alloy Name | Cu-ETP | Cu-DHP | Cu-TBC |
|---|---|---|---|
| Trade Name | Electrolytic Tough Pitch Copper | Deoxidized, High Residual Phosporus Copper | Tin Bearing Copper |
| Standard Conformance | |||
| IS | IS 191/ 14811/ 1897 | IS 191/ 14811/ 1897 | IS 3331 |
| ASTM | C11000 | C12200 | C14410 |
| BS 2870 | C101 | C106 | - |
| EN 1652 | CW004A | CW024A | - |
| JIS | C1100 | C1220 | - |
| Chemical Composition | |||
| Copper (Cu%) | 99.90 Min | 99.90 Min | 99.50 Min |
| Tin (Sn%) | - | - | 0.07 - 0.20 |
| Phosphourous (P%) | - | 0.015 - 0.040 | 0.015 - 0.045 |
| Other impurities (%) | - | - | - |
| Alloy Name | Trade Name | Temper | Hardness HV | Tensile Strength N/mm2 (Min) | Elongation% min |
|---|---|---|---|---|---|
| Cu-ETP Copper/Tape | Electrolytic Tough Pitch Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-DHP | Deoxidized, High Residual Phosphorus Copper | Annealed (O) | 55 Max | 195 Min | 35 |
| Quarter Hard(HA) | 55-75 | 215 Min | 25 | ||
| Half Hard (HB) | 75-90 | 250 Min | 15 | ||
| Hard (H) | 90 Min | 274 Min | - | ||
| Extra Hard (HE) | 110 Min | 340 Min | - | ||
| Cu-TBC | Tin Bearing Copper | Annealed (O) | 60 Max | - | - |
| Quarter Hard(HA) | 60-80 | - | - | ||
| Half Hard (HB) | 80-100 | - | - | ||
| Hard (H) | 105-125 | - | - | ||
| Extra Hard (HE) | 125 - 145 | - | - |
Aluminium Bimetallic Lugs are used when there is a contact between a terminal lug and a copper transport bar that is made of different metals. In order to avoid distinct contact and to keep a safe distance from galvanic activity, copper aluminium bimetallic lugs and connectors are always recommended. When an aluminium link must be terminated on a copper transport bar or contact, BIMetallic hauls or connectors are used.
We are in the business of assembling, producing, and shipping outstanding bimetallic connectors and bimetallic lugs. Kothari Metalloys is the leading BIMetallic Connectors and Lugs Manufacturer, Supplier in Mumbai, Maharashtra, India. These BIMetallic Connectors and BIMetallic Lugs are available in a variety of sizes to satisfy the varying needs of the client. Correctly constructed, tough construction and the ability to withstand harsh circumstances are some of the distinct characteristics of our bimetallic connections and bimetallic lugs.
| Cable mm | E | A | C | D | B | F | J | CAT NO. |
|---|---|---|---|---|---|---|---|---|
| 25 | 10.5 | 7.5 | 12 | 20 | 30 | 5 | 70 | PBL-01 |
| 35 | 10.5 | 8.5 | 12 | 20 | 30 | 5 | 75 | PBL-02 |
| 50 | 10.5 | 10.2 | 16 | 20 | 32 | 5 | 80 | PBL-03 |
| 50 | 13 | 10.2 | 16 | 25 | 32 | 5 | 85 | PBL-04 |
| 70 | 13 | 11.5 | 20 | 25 | 45 | 5 | 90 | PBL-05 |
| 95 | 13 | 13.5 | 22 | 25 | 50 | 5 | 95 | PBL-06 |
| 120 | 13 | 15.5 | 22 | 25 | 55 | 5 | 100 | PBL-07 |
| 150 | 13 | 16.5 | 25 | 25 | 60 | 5 | 105 | PBL-08 |
| 185 | 13 | 18 | 30 | 36 | 60 | 7 | 130 | PBL-09 |
| 185 | 13 | 18 | 30 | 30 | 60 | 6 | 130 | PBL-10 |
| 240 | 13 | 22 | 32 | 36 | 65 | 7 | 135 | PBL-11 |
| 240 | 13 | 22 | 32 | 30 | 65 | 6 | 135 | PBL-12 |
| 240 | 10.5x4 | 22 | 32 | 50x50 | 65 | 7.5 | 160 | PBL-13 |
| 300 | 13 | 23.5 | 35 | 36 | 70 | 7 | 140 | PBL-14 |
| 300 | 17 | 23.5 | 35 | 36 | 70 | 7 | 140 | PBL-15 |
| 400 | 13 | 26.5 | 35 | 36 | 75 | 7 | 145 | PBL-16 |
| 400 | 17 | 26.5 | 35 | 36 | 75 | 7 | 145 | PBL-17 |
| 500 | - | 30 | 47 | 60x60 | 95 | 10 | 200 | PBL-18 |
| 630 | - | 34 | 54 | 60x60 | 95 | 10 | 200 | PBL-19 |
| 800 | - | 39 | 54 | 60x60 | 115 | 10 | 220 | PBL-20 |
| 1000 | - | 42 | 60 | 80x80 | 126 | 10 | 256 | PBL-21 |
| 1300 | - | 46.5 | 65 | 80x80 | 136 | 10 | 267 | PBL-22 |
Kothari Metalloys is a leading Copper Fittings & Lug Manufacturer, Supplier & Stockist in India.
As a leading Copper Fittings & Lug Exporter, Kothari Metalloys has achieved a significant position in the global market. Our continual development and expansion are the consequence of our unrelenting efforts to connect with new clients in various regions of the world. We take great satisfaction in being known as a dependable and trustworthy Copper Fittings & Lug Supplier.
| Countries We Export | ||
|---|---|---|
| Saudi Arabia | Qatar | Canada |
| Sri Lanka | Iran | Nigeria |
| Bangladesh | Oman | UAE |
| Turkey | Kuwait | Venezuela |
| Africa | Singapore | Netherlands |
| United Kingdom | Mexico | Malaysia |
| United States | Australia | Japan |
